Differential pressure flow
Deltatop DO63C

Annular chamber for international standardized differential pressure flow measurement

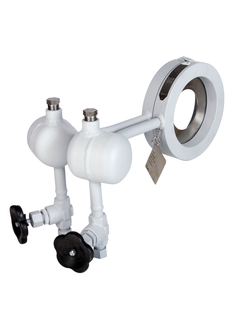

  • Deltatop DO63C - Annular chamber ©Endress+Hauser
  • Measuring principle differential pressure flowmeter

The Deltatop DO63C is part of the differential pressure flow measurement with orifices and Deltabar differential pressure transmitter. It is a three-piece orifice with carrier rings in compact or remote design and included accessories.

Benefits

  • Selectable according to the application: operational compact version or modular remote version

  • Optimized for minimum pressure loss, highest accuracy and maximum measuring dynamics

  • Measuring range of the Deltabar differential pressure transmitter adjusted on delivery

  • Measurement method globally standardized according to ISO 5167

  • Optional symmetric orifice for bidirectional measurements

  • Cost-effective solution thanks to its robust design without moving parts

Field of application

Flow measurement of gases, steam and liquids.

  • Nominal diameters from DN 25 (1") to DN 1000 (40")

  • Medium temperatures from: -200 to +1,000°C (-328 to +1,832°F)

  • Pressure up to 420bar (6,300psi)

  • Compliant with PED 97/23/EC

  • NACE-compliant materials

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: Deltaset DPO51A, Deltaset DPO51E
