Gamma Modulator FHG65 - Radiometric measurement

Radiometric measurement

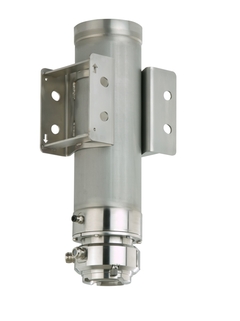

Gamma Modulator FHG65

Effective suppression of background radiation and extraneous radiation at the Gammapilot FMG50

FHG65
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

Field of application

The Gamma Modulator FHG65 is made for effective suppression of background and extraneous radiation (e. g. from non-destructive materials testing). The Gammapilot FMG50 can separate useful signals from interference radiation by its modulated radiation. This enables continuing measurements which increase plant availability and reliability.

Improving the measurement results of radioactive measurement through the effective suppression of background radiation and extraneous radiation (e.g. from non-destructive material testing) at the Gammapilot FMG50.

  • Temperature: No limitation (non-invasive, extraneous)

  • Pressure: No limitation (non-invasive, extraneous)

Benefits

  • Unhindered measurement with Gammapilot FMG50 in the event of interference radiation from non-destructive material testing up to 50μSv/h or fluctuating background radiation

  • Highest system safety thanks to safe measuring signals

  • Continuing measurements which increase plant availability and reliability

  • Cost efficient system without maintenance requirements

  • Easy installation in conjunction with FQG61/62 source containers

  • Easy integration into existing systems and fast operation
