Absolute and
gauge pressure
Ceraphant PTP31

Cost-effective pressure switch with welded metal sensor for measurement in gases, steam or liquids

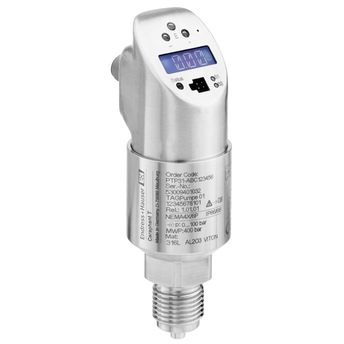

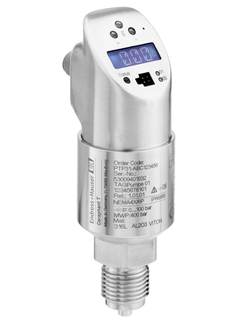

  • Ceraphant PTP31 ©Endress+Hauser
  • Pressure measuring principle

The Ceraphant PTP31 is a price-attractive pressure switch with piezoresistive sensor for safe measurement and monitoring of absolute and gauge pressure. The pressure switch with compact design is extremely stable and overload resistant for up to 400 bar.

Benefits

  • Integrated switching electronics for decentral and economic process monitoring and control

  • Function check and information on site thanks to LEDs and digital display

  • Overload-resistant sensor up to 400bar

  • Small flush mounted process connections

Field of application

Pressure switch with metallic sensor diaphragm for monitoring absolute and gauge pressures in gases, vapors, liquids and dusts.

  • Process connections: Threads

  • Process temperature: -40 up to +100°C (-40 to +212°F)

  • Pressure:-1/0 up to +400bar (-15/0 up to +6000psi)

  • Accuracy: ±0.5%

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

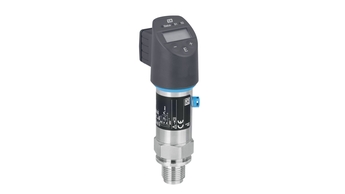

Successor: Ceraphant PTP31B
