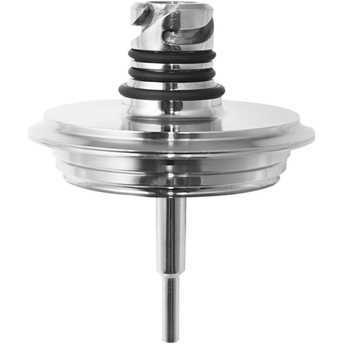

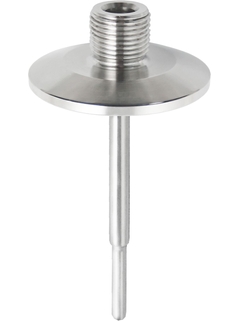

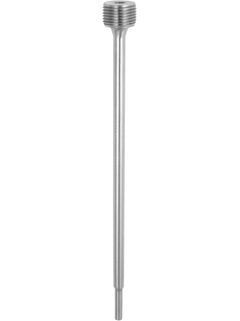

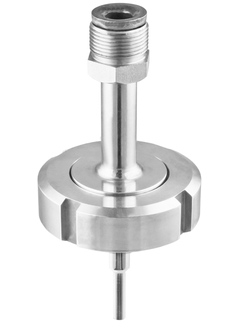

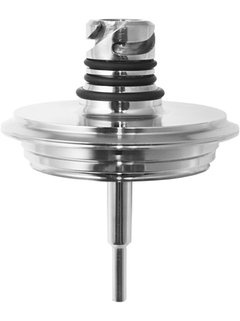

iTHERM TT411
Protection tube

Designed for hygienic and aseptic applications in the Food & Beverages and Life Sciences industries

  • ©Endress+Hauser
  • ©Endress+Hauser
  • ©Endress+Hauser
  • ©Endress+Hauser

Best applicable for use in hygienic or aseptic pipes and containers or tanks even with very small immersion lengths. It meets increased protection requirements of the temperature sensor regarding physical and chemical effects. Ideally suited to all measuring points that require regular recalibration by simply replacing the insert in closed processes.

Benefits

  • iTHERM QuickNeck – cost and time savings thanks to simple, tool-free
    recalibration of the insert used

  • Over 50 hygienic process connections

  • Global portfolio with metric and imperial versions

  • International certification: hygiene standards as per 3-A®, EHEDG, ASME BPE,
    FDA, TSE Certificate of Suitability

  • Optional: 1.4435 material, delta ferrite content < 1%

  • Fast response time owing to reduced tips with thin walls

Field of application

Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries

  • Pressure range up to 40 bar (580 psi)

  • For increased protection requirements of the temperature sensor regarding physical and chemical effects

  • For use in pipes and containers or tanks

  • Ideally suited to all measuring points that require regular recalibration by simply replacing the insert in closed processes

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: TA14, Pipe thermowell TW45, Bar stock thermowell TW47
