Radar measurement

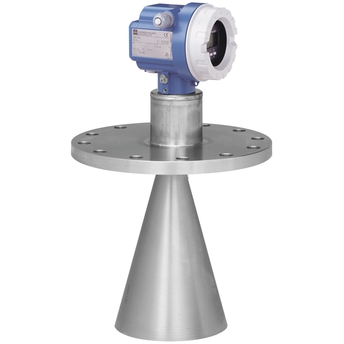

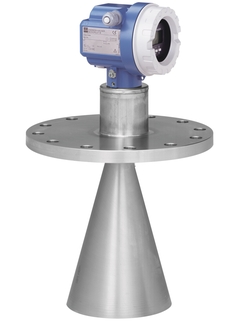

Micropilot FMR230

Cost effective 4 to 20mA 2-wire technology and suitable for hazardous locations

  • ©Endress+Hauser

The Micropilot FMR230 is especially suited for measurement in buffer and process tanks. FMR230 is used for continuous, non-contact level measurement of liquids, pastes, slurries and solids. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

Benefits

  • Non-contact measurement: Measurement is almost independent from product properties

  • 2-wire technology, low price: A real alternative to differential pressure, floats and displacers.
    2-wire technology reduces wiring costs and allows easy implementation into existing systems

  • Easy commissioning, documentation and diagnostics via Endress+Hauser operating software

  • Easy on-site operation via menu-driven alphanumeric display

  • Used for level monitoring (MIN, MAX) up to SIL 2 as per IEC 61508/ IEC 61511-1

  • Frequency range in the C-band

  • Option: Gastight feedthrough to improve the process safety

Field of application

The Micropilot M is used for continuous, non-contact level measurement of liquids, pastes, slurries and solids. The measurement is not affected by changing media, temperature changes, gas blankets or vapors. The FMR230 is especially suited for measurement in buffer and process tanks.

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: FMR230V

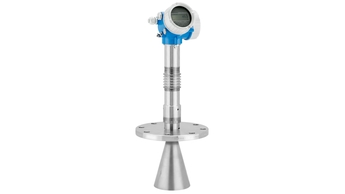

Successor: Micropilot FMR54
