Specs at a glance
Device version

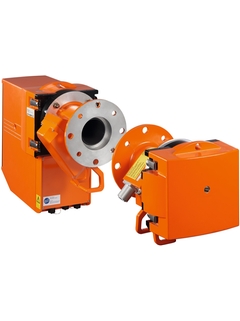

Cross-duct version
Ambient temperature range
-20 °C ... +55 °C
Field of application

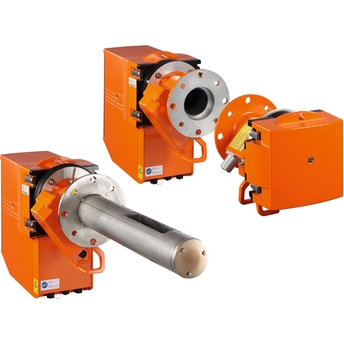

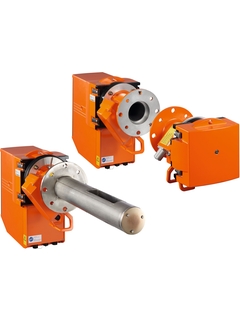

Simultaneous or as individual measurement: the GM35 gas analyzer measures CO2, H2O and CO, as well temperature and pressure – and it does this reliably, quickly, and economically. As an in-situ gas analyzer, the GM35 detects these gas components directly in the gas stream without gas sampling. Reliability, accuracy, and short response time of the GM35 offer a key advantage for efficient control loops in CO and CO2-generating processes.
Emission monitoring according to EN 14181, e. g., in power or cement plants
Control of the water injection upstream of the electrostatic precipitator
Device properties:
Dynamic humidity correction
Fast in-situ measurement directly in the process
Simultaneous determination of up to three gas components, temperature, and pressure
No gas sampling and conditioning
Gas testable version of measuring probe available
Integrated self-test and control functions
Benefits
Dynamic moisture measurement directly within the process
Provision of measured moisture reference values
Nearly uncompromised measured values thanks to in-situ measurement
Fast or transient process deviations are measurable
Representative measurement by selecting a suitable measuring probe or cross-duct type
Xpert selection
Specialized products
Designed for demanding applications
Technical excellence
Simplicity
©Endress+Hauser
Simple products
Easy to select, install and operate
Technical excellence
Simplicity
Standard products
Reliable, robust and low-maintenance
Technical excellence
Simplicity
High-end products
Highly functional and convenient
Technical excellence
Simplicity
Specialized products
Designed for demanding applications
Technical excellence
Simplicity
FLEX selections
Technical excellence
Simplicity
Fundamental selection
Meet your basic measurement needs
Technical excellence
Simplicity
Lean selection
Handle your core processes easily
Technical excellence
Simplicity
Extended selection
Optimize your processes with innovative technologies
Technical excellence
Simplicity
Xpert selection
Master your most challenging applications
Technical excellence
Simplicity
Loading alternative products
Success stories
Measuring hydrogen quality in real time
Enapter uses optical analytical measurement technology from Endress+Hauser to determine the purity of hydrogen produced. Find out more!
Read the full story
Measuring principle
Gas filter correlation, Interference filter correlation
Performance-tested measurands
Device version
Cross-duct version
Certified measuring ranges
CO: 0 ... 75 mg/m³ / 0 ... 2,000 mg/m³
Measuring range
CO: 0 ... 180 ppm / 0 ... 20,000 ppm
Ambient temperature range
-20 °C ... +55 °C
Ambient humidity
≤ 96 %
Most downloaded
GM35 – in-situ gas analyzer for measurement of CO2, H2O and CO
English version - 01/2025
The GM35 gas analyzer measures CO2, H2O and CO or N2 concentrations as well as temperature and pressure quickly, easily and
economically.
Language:
English
Version:
01/01/2025
File size:
2.9 MB
File name:
8029966_IN_GM35_en_V3-1_2025.01_EHS.pdf
Solutions for chemicals, petrochemicals and refineries
English version - 01/2025
Endress+Hauser offers a broad product portfolio of continuous gas analyzers using state-of-the-art technologies.
Language:
English
Version:
01/01/2025
File size:
3.1 MB
File name:
8030415_CPR_en_V1-0_2025.01_EHS.pdf
8 documents
Gas Analyzer, GM35, Cross-Duct Version
Language:
English
Version:
01/01/2025
File size:
10.2 MB
File name:
8029932_AE00_OI_GM35_Cross-Duct_en_V4-1_2025-04_EHS.pdf
Gas Analyzer, GM35, Probe Version
Language:
English
Version:
01/01/2025
File size:
9 MB
File name:
8029930_AE00_OI_GM35_Probe_en_V4-1_2025-05_EHS.pdf
for non-Ex analyzer devices
Language:
English
Version:
01/01/2025
File size:
2.4 MB
File name:
8030257_XA_Safety_Information_non-Ex_ml_V1-0_2016-06_WEB.pdf
Solutions for chemicals, petrochemicals and refineries
Endress+Hauser offers a broad product portfolio of continuous gas analyzers using state-of-the-art technologies.
Language:
English
Version:
01/01/2025
File size:
3.1 MB
File name:
8030415_CPR_en_V1-0_2025.01_EHS.pdf
Soluzioni per il monitoraggio delle
emissioni
Soluzioni per il monitoraggio delle
Language:
Italian
Version:
27/05/2025
File size:
4.5 MB
File name:
CP01596C16IT01.25-00.pdf
Emission Monitoring Solutions – broad instrument portfolio and
longstanding experience
An overview brochure about emission monitoring, their measuring
Language:
English
Version:
01/01/2025
File size:
4.9 MB
File name:
8029975_CP_Emission_Monitoring_Solutions_en_V3-0_2025.01_EHS.pdf
GM35 – in-situ gas analyzer for measurement of CO2, H2O and CO
The GM35 gas analyzer measures CO2, H2O and CO or N2 concentrations as well as temperature and pressure quickly, easily and
Language:
English
Version:
01/01/2025
File size:
2.9 MB
File name:
8029966_IN_GM35_en_V3-1_2025.01_EHS.pdf
SOPAS device description file for GM35
Language:
Language neutral
Version:
29/02/2016
File size:
375 KB
File name:
GM35 SDD file
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
MALE CONNECTOR,WIRED MAIN POWER
CABLE,RD. FEM /FER 4M000 320.75
CABLE,RD. FEM /FER 4M000 31.5
SP-SET GASKET GPP35 430DEGREE C WATLOW
SP-SET HEATING-WINDOW GPP35/031
SP-SET HEATING-REFLECT. GPP35/031
SP-SET FILTER CARTRIDGE L= 750 TEF+CER
SP-SET FILTER CARTRIDGE L=1000 TEF+CER
SP-SET POWER SUPPLY UNIT TESTED
SP-SET ADJUSTMENT TOOL,TESTED
SP-SET GASKET GPP35 430GR.T-GROOVE
SP-SET TRACKING MIRR.R1090 FD4M5-7M5
SP-SET TRACKING MIRR.R1000 FD2M3-4M0
SP-SET TRACK.MIRR.960 FD1M5-2M3 PL2M5
SP-SET TRACK.MIR.R878 FD0M5-1M5 PL1M5-2M
SP-SET TRACK.MIR.R 788 FD0M0-0M5 PL1M0
SP-SET CUVE.WHEEL HOUS.W.MOT.A.LENS CO
SP-SET FILT.WHEEL HOUS.W.MOT.A.LENS H2O
SP-SET 0.9M CONCAVE TRIPLE,LENS,SEAL
SP-SET 1.5M CONCAVE TRIPLE,LENS,SEAL
SP-SET 2.0M CONCAVE TRIPLE,LENS,SEAL
SP-SET 2.5M CONCAVE TRIPLE,LENS,SEAL
SP-SET FIL.WHEEL HOU. W.MO.A.LENS CD H2O
SP-SET RADIAT. UNIT SELECT ALU ESD
SP-SET EB-SYSTEM CONTROL GM35
SP-SET EB-SYSTEM CONTROL GMA35 + SCU
SP-SET HYGROCLIP2, I2C USER-INTERFACE
SP-SET REC.EB H2O,CALIBRATED CD ESD
SP-SET REC.EB CO,CALIBRATED ESD
SP-S.REC/220-430°/1000CO/ 35%H2O/ 30%CO2
SP-SET REC/20-250°/2000CO/35%H2O/ 30%CO2
SP-S.REC/20-250°/2000CO/150%H2O/120%CO2
SP-SET REC.EB H2O,CALIBRATED ESD
SP-SET REC.EB/20-250°/30%H2O/20%CO2 ESD
SP-SET REC.EB/20-430°/35%H2O/30%CO2 ESD
SP-SET REC.E/20-250°/150%H2O/20%CO2 ESD
SP-SET REC./20-250°/1000CO/35%H2O/30%CO2
SP-SET PCBA-CONNECTOR MALE ESD
SP-SET STEER MOTOR FILTER SEGMENT ESD
SP-SET MOTOR WITH SWIVEL ELEMENT ESD
SP-SET SOCKET,COMPLETE D=42MM
SP-SET COVER PLATE FOR INTERN. OPTIC
SP-SET LENS ASSEMBLY , PROBE 0.9 M
SP-SET LENS ASSEMBLY , PROBE 1.5 M
SP-SET LENS ASSEMBLY , PROBE 2.0 M
SP-SET LENS ASSEMBLY , PROBE 2.5 M
SP-SET PRESSURE COMPENSATION ELEMENT
SP-SET SEALING BAND D235352-NEOPR
SP-SET FRONT LENS ASSEMBLY
SP-SET CABLE W.TEMPERATURE SENSOR 0,290M
SP-SET SCWITCH,KEYBOARD FOIL BUTTON
CONVERSION KIT GPP35-1,5M ON TRIPLE CAF2
CONVERSION KIT GPP35-0,9M ON TRIPLE CAF2
CONVERSION KIT GPP35-2,0M ON TRIPLE CAF2
CONVERSION KIT GPP35-2,5M ON TRIPLE CAF2
SP-SET REC.EB H2O HI.CONC.,CALIBR.CD ESD
FLANGE ATTACHMENT ASSEMBLED
CABLE,RD. MALE/FEM 0M800 320.75
FILTER CARTR.CERAMIC L= 250MM SPARE PART
FILTER CARTR.CERAMIC L= 500MM SPARE PART
FILTER CARTR.CERAMIC L= 750MM SPARE PART
FILTER CARTR.CERAMIC L=1000MM SPARE PART
CABLE,RD. FEM /FER 10M200 320.75
SP-SET EB-CONNECTOR FEMALE ESD
CABLE,RD. MALE/FEM 5M000 20.34
SP-SET SEAL RING W.HOSE CLAMP
SP-SET FILTER CART.L= 500 TEF+CER 1.4539
SP-SET FILTER CART.L= 750 TEF+CER 1.4539
SP-SET FILTER CARTRIDGE L= 500 TEF+CER
SP-SET FILTER CART.L=1000 TEF+CER 1.4539
FILTER CARTR.CERAMIC L= 500MM SP. 1.4539
SP-SET PR.MEAS.N. DA=40 0-160QM/H0-60MBR
SP-SET PR.MEA.NOZ.DA=40 0-90QM/H 0-60MBR
SP-SET SEAL CONNECTION HOUSING
SP-SET FILTER CART. L=1000 CERA. 1.4539
SP-SET FILTER CART. L= 750 CERA. 1.4539
SP-SET SEAL FOR FLANGE D235352
SP-SET PRESS.EQUALIS.ELEMENT M121,5 SW
SP-SET CABLE, FL. MALE/MALE 0,150M
SP-SET SLIDE LOCK A. HOOK
SP-SET HEATING TRIPLE 48V W.CLAMP
SP-SET SEALING RING D2254010.4
SP-SET F. FRONT LENS ASS. SMALL MAINT.
SP-SET SEAL.CORD FOR HOUSING GMP-/GPP35
SP-SET TEMPERATURE SENS. PT1000 L=1610MM
SP-SET TEMPERATURE SENS. PT1000 L=420MM
SP-SET TEMPERATURE SENS. PT1000 L=2360MM
SP-SET TEMPERATURE SENS. PT1000 L=2110MM
SP-SET TEMPERATURE SENS. PT1000 L=600MM
SP-SET TEMPERATURE SENS. PT1000 L=810MM
SP-SET TEMPERATURE SENS. PT1000 L=1060MM
SP-SET TEMPERATURE SENS. PT1000 L=1310MM
SP-SET TEMPERATURE SENS. PT1000 L=1800MM
SP-SET TEMPERATURE SENS. PT1000 L=200MM
LENS CLOTH HSS 3535CM A.DSP
SEAL DA 250 /DI 120 TK200/TK215,9
SEAL D126 /116 7 GRAPHITE A.DSP
PROTECT.CAP D 40 25 LD-PE NC
FILTER INSERT MICRO-TOP 3000L/MIN
RV-BLOWER 240/415V 50HZ 3PH 1.30KW
UDR-WAECHTER 35MBAR SCHLIES.
SWITCH,LOW PRESSU. 35MBAR NC
CONNECTOR PURGE AIR HOSE DN40
HOSE DI=50, 90° ELBOW W.MAINTENANCE
CLAMP,HOSE D 40- 60 12 SST
RV-BLOWER 115/230V 50/60HZ 1PH 0.37KW
