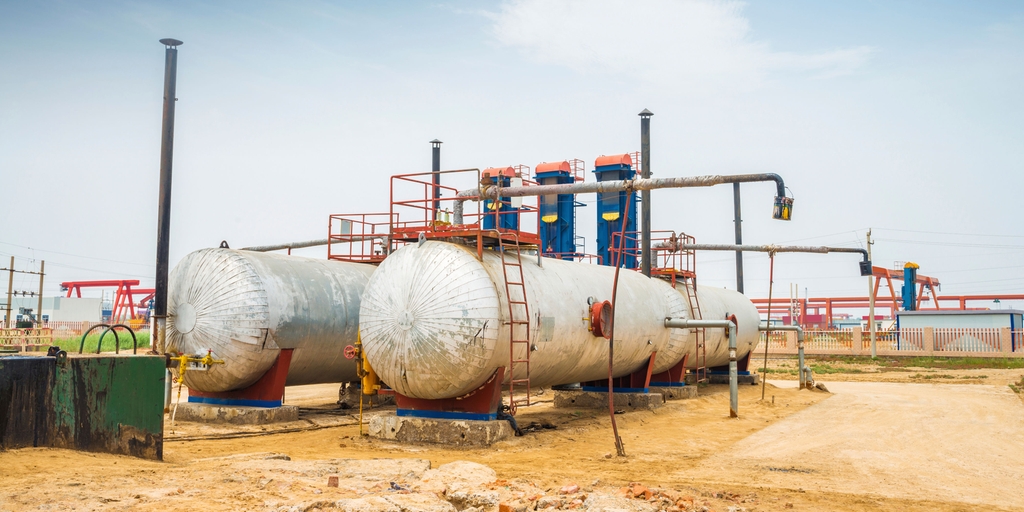

Optimize heavy/ medium crude separation
Get higher quality crude and less maintenance
A higher quality crude and less maintenance in your process is now possible with our multiparameter guided wave radar technology. Often in separator applications, there is a rag layer (emulsion) which can cause challenges in accurate interface and overall level measurement. This technology is specifically designed to overcome these challenges.
Benefits at a glance
No interruption in the measurement of the separation process
Easy installation and maintenance without any special tools
Higher quality crude oil
-
Multiparameter probe for interface measurement. Two current outputs for interface layer and overall level.
Challenge
In medium and heavy crude separation (API 15° to 31° 870 to 960 kg/m3 (7.3 to 8 lb/gal)), it can be challenging to measure the overall level as well as the interface accurately with a single device. In these applications a rag layer (emulsion) often exists. If this rag layer exceeds 5 cm (2 inches), a standard guided wave radar device will not be able to measure the interface. And, a capacitance level device would only be able to show the level of the water - not the overall level.
Our solution
Our patented multiparameter guided wave radar device combines traditional guided wave radar technology with capacitance level technology - taking the advantages of each into one device. Once the rag layer (emulsion) has reached a thickness greater than about 5 cm (2 inches) - the sensor automatically switches into capacitance mode - so the interface is detected continuously.
Levelflex M FMP55 with a coaxial probe
Reliable measuring:
For interface with emulsion
In case of turbulent surface and foam
For changing media
High availability
Integrated data memory
Factory pre-calibrated
Intuitive, menu-guided operating concept in national languages
Simple integration into control or asset management systems
Exact instrument and process diagnosis to enable quick decisions
Approvals: ATEX, IEC Ex, FM, CSA
