Specs at a glance
-
Max. measurement error
±0,5% o.r. ± 2 mm/s (±0,5% o.r. ± 0,08 in/s)
-
Measuring range
9 dm3/min to 110 000 m3/h (2.5 gal/min to 700 Mgal/day)
-
Medium temperature range
'0 to +80 °C (+32 to +176 °F), –20 to +50 °C (–4 to +122 °F)
-
Max. process pressure
PN 40, Class 300, 20K
-
Wetted materials
Liner: polyurethane; hard rubber
Field of application

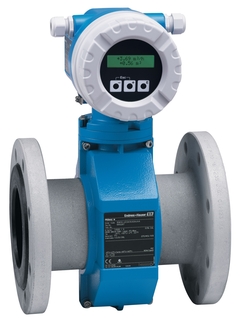

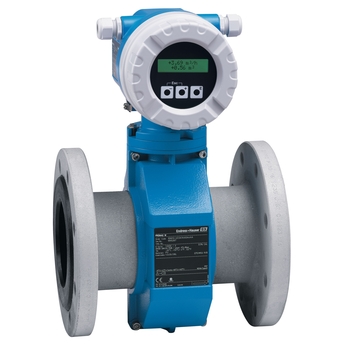

Thanks to its international approvals (e.g. for drinking water), Promag W serves a wide variety of applications. Combined with the Promag 10 transmitter for basic applications and direct integration, Promag 10W offers accurate measurement of liquids for a wide range of applications. It will be the preferred solution for customers aiming for minimized cost of ownership. Promag 10W is available as compact or remote version.
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
Suitable for elementary measurement tasks such as raw water intake
Device properties
International drinking water approvals
Degree of protection IP68 (Type 6P enclosure)
2-line display with push buttons
Device as compact or remote version
HART
Benefits
Flexible engineering – sensor with fixed or lap-joint process connections
Reliable measurement – accurate measured values even with 0 x DN inlet run
Improved plant availability – sensor compliant with industry-specific requirements
Cost-effective – designed for easy applications and direct integration
Safe operation – display provides easy readable process information
Fully industry compliant – IEC/EN/NAMUR
Videos
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
-
Technical Information (TI)
Proline Promag 10W Technical Information
English version - 11/2017
Electromagnetic flowmeter Flowmeasurement in water or wastewater applications
EN 27/11/201713/03/201718/02/201010/08/200901/06/2005Language:
English
Version:
27/11/2017
File size:
2.8 MB
File name:
TI00093DEN_1417.pdf
-
-
-
Operating Instruction (BA)
Proline Promag 10 HART Operating Instructions
English version - 11/2017
Electromagnetic flowmeter
EN 27/11/201713/03/201709/02/201601/02/201501/04/2014Language:
English
Version:
27/11/2017
File size:
8.2 MB
File name:
BA00082DEN_1917.pdf
-
-
-
Technical Information (TI)
Proline Promag 10W Technical Information
Electromagnetic flowmeter Flowmeasurement in water or wastewater applications
EN 27/11/201713/03/201718/02/201010/08/200901/06/2005Language:
English
Version:
27/11/2017
File size:
2.8 MB
File name:
TI00093DEN_1417.pdf
-
-
-
Operating Instruction (BA)
Proline Promag 10 HART Operating Instructions
Electromagnetic flowmeter
EN 27/11/201713/03/201709/02/201601/02/201501/04/2014Language:
English
Version:
27/11/2017
File size:
8.2 MB
File name:
BA00082DEN_1917.pdf
-
-
-
Short Instruction (KA)
Proline Promag 10 Brief Operating Instructions
Electromagnetic flowmeter
EN 27/11/201713/03/201704/04/201609/09/201501/02/2015Language:
English
Version:
27/11/2017
File size:
1008.4 KB
File name:
KA00032DEN_2017.pdf
-
-
-
Installation Instructions (EA)
Repair kit cover remote version Installation Instructions
Promag 10, 50,51, 53, 55, 400, 800, Promass 80, 83, 84, CNGmass DCI, Cubemass DCI, Prosonic Flow 92 F, t-mass 65
EN 01/10/201813/11/201418/04/2014Language:
English
Version:
01/10/2018
File size:
216.9 KB
File name:
EA01108DA2_0318.pdf
-
-
-
Installation Instructions (EA)
Safety Instructions for Spare Parts Installation Instructions
Flowmeter
EN 01/03/201828/11/201325/04/2013Language:
English
Version:
01/03/2018
File size:
139.5 KB
File name:
EA01051DA2_0318.pdf
-
-
-
Installation Instructions (EA)
Replacing cover and O-ring Installation Instructions
romag 10, 23, 50, 51, 53, 55, 400, 800, Promass 40, 80, 83, 84, 8ME, CNGmass 8FF, LPGmass 8FE, Cubemass 8CM, Prosonic Flow 90, 91,9 2, 93, t-mass 65,Prowirl 72, 73
EN 01/10/201828/06/2012Language:
English
Version:
01/10/2018
File size:
520.1 KB
File name:
EA00098DA2_1518.pdf
-
-
-
Installation Instructions (EA)
Interface parts Installation Instructions
Promag 10, 23, 50, 51, 53, 55,400, 800
EN 01/05/201728/06/2012Language:
English
Version:
01/05/2017
File size:
1.1 MB
File name:
EA00033DA2_1517.pdf
-
-
-
Installation Instructions (EA)
Installing ground disks
Promag 10, 23, 50, 51, 53, 55, 100, 200, 300, 500, 800, 400 Index C
EN 09/10/202001/03/201815/07/2014Language:
English
Version:
09/10/2020
File size:
698.2 KB
File name:
EA00070DA2_1520.pdf
-
-
-
Installation Instructions (EA)
Replacing the transmitter Installation Instructions
Promag 10, 23, 50, 53, 55
EN 01/04/201902/03/2010Language:
English
Version:
01/04/2019
File size:
1 MB
File name:
EA00082DA2_1119.pdf
-
-
-
Installation Instructions (EA)
Replacing Sensor parts remote version Installation Instructions
Promag 10, 50, 51, 53, 55, 400, 800, Promass 80, 83, 84, Cubemass 8CN, CNGmass 8DF
EN 01/04/201928/06/2012Language:
English
Version:
01/04/2019
File size:
313.4 KB
File name:
EA00038DA2_1419.pdf
-
