Analog conductivity sensor

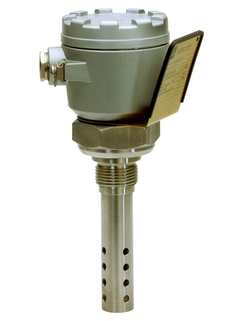

Condumax CLS12

Analog conductivity sensor Condumax CLS12 ©Endress+Hauser

The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.

  • Analog conductivity sensor Condumax CLS12

Conductive conductivity sensor for high temperature applications in the power & energy industry

Condumax CLS12 is a robust conductivity sensor for steam/water cycles in power plants. It is optimized for low conductivities (even under high temperatures and pressures) to protect your processes from deposits and corrosion. Low maintenance and simple to commission (large connection compartment), this is the ideal sensor for tough environments.

Additional components

  • Benefits

    • Reliable and accurate measuring values at low conductivities

    • Optimized for high pressures and temperatures up to 160°C (320°F)

    • Easy cleaning thanks to stainless steel body and removable outer electrode

    • Robust design for high durability

    • Quality certificate...

  • Field of application

    Condumax CLS12 measures conductivity in the steam/water cycle in the power & energy industry:

    • Condensate monitoring

    • Boiler feedwater monitoring

    • Boiler blowdown control

    The sensor can be used in all low conductivity applications with high temperatures...

Features and specifications

Back

Details

  • Measuring principle

    Conductive

  • Application

    Power plant, condensate, boiler feed water

  • Characteristic

    2-electrode conductivity cell for high temperature applications in pure and ultrapure water.

  • Measurement range

    k=0,01: 0-20 µS/cm
    k= 0,1: 0-200 µS/cm

  • Measuring principle

    Conductive conductivity cell with polished stainless steel electrodes.

  • Design

    - Large coaxially arranged electrodes for a fast media flow through the cell.

  • Material

    - Stainless steel 1.4571
    Sealing PEEK / EPDM

  • Dimension

    Electrode diameter: 25 mm
    Immersion depth: 50 mm - 115 mm

  • Process temperature

    max. 160°C
    (320°F)

  • Process pressure

    max. 40 bar (100°C)
    (580 psi (212°F)

  • Temperature sensor

    integrated Pt100

  • Ex certification

    ATEX

  • Connection

    Process connection : G1" and NPT1"Fixed cable on transmitter.

  • Ingres protection

    IP67

  • Additional certifications

    calibration certification with cellconstant

Documents / Manuals / Software

  • Technical information Conductivity Sensor for High-Temperature Applications ConduMax W CLS 12
