Specs at a glance

Measuring range

pH 1-13 (<100µS/cm)
Process temperature

2°C - 75°C
(36°F - 167°F)
Process pressure

max. 3 bar
(43.5 psi)

See all specifications

Field of application

Purisys CPF201 is the specialist for pure and ultrapure water. Its integrated stainless steel assembly provides stable and flow-independent measurement at lowest conductivities. Purisys ensures optimum water quality and guarantees highest safety of your products or assets.

Boiler feed water
Power plant applications
Pharmaceutical water for injection

Benefits

Stable pH reading and response
Elimination of flow dependency errors
Patented porous PTFE reference junction
Easy installation

Videos

The pH-value of a liquid can be calculated using the potentiometric measurement principle. This video shows what it is about and how this measuring principle works.

Success stories

Conductivity system optimises production of biosurfactants

Holiferm produces sustainable biosurfactants using a patented gravity separation fermentation process. The company was seeking a way to automate the measurement of the critical phase separation step.
Read the full story
Water/steam circuit at GETEC PARK.SWISS

GETEC SWISS.PARK improves plant efficiency and decreases downtimes thanks to Endress+Hauser SWAS System
Read the full story
Advanced bioprocess control

From time consuming sample analysis to real-time monitoring of critical parameters in fermentation processes thanks to complete solutions from hardware to development and analytical services.
Read the full story
Cooling water directly from the Baltic Sea

With the CUS52D, power plant operator KNG benefits from reduced maintenance costs due to reliable, stable measurement even under harsh conditions in salt water.
Read the full story
Lab-based pH calibration presents new possibilities

Beiersdorf uses digital Memosens technology for maximum availability of measuring instruments
Read the full story

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Measuring principle

Potentiometric
Application

Ultra pure water (<100µS/cm); power plants
Characteristic

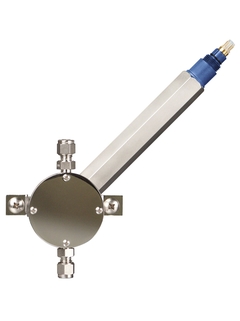

Bypass measurement system made of stainless steel with gel electrode and salt storrage for measurements in ultra pure water.
Measuring range

pH 1-13 (<100µS/cm)
Measuring principle

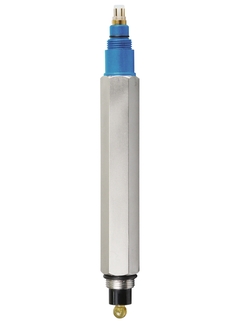

Glass-gel compact electrode with PTFE diaphragm and salt (KCl) storrage
Design

Electrode in stainless steel boundary surface installed in a stainless steel flow assembly for potential free measurements in ultrapure water with lowest conductivity.
Material

Glass, stainless steel
Dimension

Installation on a plate (305 mm x 305 mm).
(11.89 inch x 11.89 inch)
Process temperature

2°C - 75°C
(36°F - 167°F)
Process pressure

max. 3 bar
(43.5 psi)
Temperature sensor

Optional with integrated Pt100 oder Pt1000.
Connection

TOP68 connection head or fixed cable connection.
Ingress protection

IP68

Filter

1 documents

Technical Information (TI)

Technical Information Compact pH Electrode PuriSys CPF 201

Technical Information (TI)

English version - 06/2003

New version available in English

Compact electrode for pH measurement in pure and
ultrapure water

Select other languages, versions and see details Hide selection and details

	EN
01/06/2003

Language:	English
Version:	01/06/2003
File size:	1021 KB
File name:	TI366CEN.pdf

Share
- Copy Link
- Send Mail
Download

Filter

Search spare parts by number in drawing

- Show drawing (PDF)

60 spare parts & accessories

Kit CPF201 backplane with accessories

further parts

Order code

51512788
Kit CPF201 complete set of gaskets

further parts

Order code

51512789
Kit CPF201 Fitting VA, OD 6 mm, 2 pcs.

further parts

Order code

51512792
Kit CPF201 Fitting VA, 1/4", 2 pcs.

further parts

Order code

51512793
Kit CPF201 flowcell lid with accessories

further parts

Order code

51512795
Technical buffer solution CPY20

Order code

CPY20-
KCL-Electrolyte solution CPY4

Order code

CPY4-
