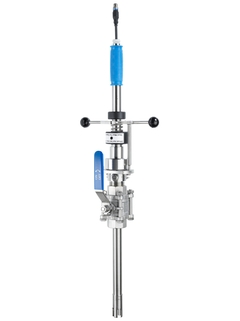

Manual retractable assembly Cleanfit CPA450
Basic assembly for the water & wastewater, chemical, pulp & paper and power industries
The manual Cleanfit CPA450 is the first step into the world of retractable assemblies. It is designed for installation in thick-walled tanks or large pipes and copes with fibrous or coating media. CPA450 features a ball valve which seals off the process reliably, making sensor handling extremely easy. It is no longer necessary to interrupt the process or empty a tank for sensor service or replacement.
-
Benefits
No process interruption for electrode cleaning and calibration – saves maintenance time and costs
High operating safety through reliable separation from process by ball valve made of stainless steel
Variable immersion depth up to 700 mm
Flexible adaptation...
-
Field of application
Cleanfit CPA450 is intended for installation in thick-walled tanks and large pipes in:
Chemical industry
Pulp and paper industry
Power plants
Wastewater treatment
Fibrous media or media that form coats
It is suitable for use with pressures of up to 12...
Documents / Manuals / Software
-
Technical Information CPA 450
Manually operated Retractable Assembly for Installation of pH/Redox Electrodes in Tanks or Pipelines
Technical Information (TI) -
Operating Instructions CPA450
Retractable Assembly for pH/Redox Measurement
Operating Instruction (BA) -
Liquisys M CLM223/253
Operating Instructions
Transmitter
Operating Instruction (BA) -
White Paper-Addressing "Impossible to Measure" pH Applications in the Inorganic Pigments
White paper explaining how automated, retractable pH systems provide a solution in the process measurement of pH in difficult pigment applications.
Industry Solutions (SO)12/01us -
Catálogo Portfolio Analítica
Desde sensores hasta soluciones completas
Fields of Activities (FA)01/17Spanish -
Expertise in liquid analysis
From sensors to complete turnkey solutions
Fields of Activities (FA)01/17English -
Esperti nell’analisi dei liquidi
Dai sensori singoli a soluzioni complete “chiavi in mano”
Fields of Activities (FA)01/17Italian -
Jistota v analýze kapalin
Od senzorů po dkompletní odávku na klíč
Fields of Activities (FA)01/17Czech -
Kompetenz in der Flüssigkeitsanalyse
Vom Sensor bis zur schlüsselfertigen Komplettlösung
Fields of Activities (FA)01/17German -
pH 測定セレクションガイド
産業プロセスにおける pH 測定
Competence Brochure (CP)08/15Japanese -
CP00010C pH measurement in industrial processes for US market
Selection and engineering guide for your industry and application
Competence Brochure (CP)04/15English -
Measurement and control aspect of pH using inductively coupled with
bidirectional Memosens technology in flue gas desulfurization process
White Paper CP971C pH measurement and control in a power utility is an integral part of process. The scrubber efficiency is highlydependent on the pH. Numerous opportunities were revealed for saving time, as well as the cost and materials in power plants. In afossil fuel power plant, the chemical energy stored in coal, oil, natural gas, shale oil, oxygen and air is converted into thermal, mechanical and finally into electrical energy. In other words, water is heated to steam, which spins a steam turbine. The steam turbine drives an electrical generator.
Competence Brochure (CP)04/11English -
CP01202C pH Sensors:Calibrate, clean, perform a calibration check
or...?
This white paper will address Knowing when to do a pH sensor calibration versus a calibration check How to properly clean a pH sensor How to perform a pH sensor calibration A decision tree for step by step guidance
Competence Brochure (CP)02/12English -
Prozessautomatisierung, die Gold wert ist
Memosens pH-Sensoren verbessern Prozesse bei Agnico Eagle
Case Studies (CS)07/16German -
Process automation worth its weight in gold
Memosens pH sensors improve processes at Agnico Eagle
Case Studies (CS)07/16English -
L’automatisation des process vaut son pesant d’or
Memosens Les sondes de pH améliorent les process chez Agnico Eagle
Case Studies (CS)07/16fr -
Cleanfit W CPA450
Prozess-Handwechselarmatur für pH-Einstabmessketten zur In-Line-Messung in Rohrleitungen und Behältern ausgeführt als Wechselarmatur, manuelles Herausfahren der Messelektrode aus dem Prozeß in einen Schleusenraum unter Prozessbedingungen
Tender Text10/09German -
CleanFit CPA450
1 Retractable assembly for combination pH measuring chains installed in-line or in vessels
Tender Text09/05English -
CleanFit, CleanFit P, FlowFit W
Product Code: CCA250-, COA451-, CPA450-, CPA471-, CPA472-, CPA472D-, CPA473-, CPA474-, CPA871-, CPA875- Region/Country: Russia (Declaration of Conformity) Approval Number: EAEC_N_D-DE.NA10.B.0145718
MiscellaneousRussian -
CleanFit, CleanFit H, CleanFit P, FlowFit W
Product Code: CUA451-, CPA875-, CPA871-, CPA475-, CPA474-, CPA473-, CPA472D-, CPA472-, CPA471-, CPA450-, COA451-, CCA250- Region/Country: Russia (TR CU) Approval Agency: EAC Approval Number: TC № RU D-DE.AL32.B.02544
MiscellaneousRussian
Accessories / Spare parts
-
-
Order code 50090489
EPDM O-ring set for CPA 450
-
Order code 50090490
Viton O-ring set for CPA 450
-
Order code 71028925
Kalrez O-ring set for CPA 450
-
Order code 51517802
Kit CPA450 PM mounting set
-
Order code 51517804
Kit CPA450 Sensor holder; 316L; EPDM
-
Order code 51517805
Kit CPA450 Sensor holder; 316L; Viton
-
Order code 71028949
Kit CPA450 Sensor holder; 316L; Kalrez
-
Order code 71128830
Kit CPA450, immersion tube 100 mm 316L
-
Order code 71128831
Kit CPA450, immersion tube 250 mm 316L
-
Order code 71128832
Kit CPA450, immersion tube 700 mm 316L
-
Order code 71128833
Kit CPA450, immersion tube 100mm Alloy
-
Order code 71128834
Kit CPA450, immersion tube 250mm Alloy
-
Order code 71128836
Kit CPA450, immersion tube 700mm Alloy
-
Order code 71128837
Kit CPA450, immersion tube 100mm titan.
-
Order code 71128838
Kit CPA450, immersion tube 250mm titan.
-
Order code 71128839
Kit CPA450, immersion tube 700mm titan.
-
Order code 71244830
-
Order code 71128841
Kit CPA450 Flanged sleeve; Alloy; Kalrez
-
Order code 71128842
Kit CPA450 Flanged sleeve; Ti; Kalrez
-
Order code 71132821
-
Order code 51501535
Kit CPA450 Interlock; PA
contains setting collar, clamping ring and union nut
-
Order code 51501536
Kit CPA450 Flanged sleeve; 316L; EPDM
-
Order code 51501537
Kit CPA450 Flanged sleeve; 316L; Viton
-
Order code 71028947
Kit CPA450 Flanged sleeve; 316L; Kalrez
-
Order code 51501538
Kit CPA450 Rinse cham. G1 1/4 inch; 316L
-
Order code 51501539
Kit CPA450 Flushing NPT 1 1/4 inch; 316L
-
Order code 51501540
-
Order code 51501542
Kit CPA450 Ball valve G1 1/4 inch ; 316
-
Order code 51501543
Kit CPA450 Ball valve NPT1 1/4 inch; 316
-
Order code 51501544
Kit CPA450 Flange DN32; 316
-
Order code 51501545
Kit CPA450 Flange AISI 1 1/4 inch ; 316
-
Order code 51501546
Kit CPA450 Rinse cha. flange;316L;EPDM
-
Order code 51501547
Kit CPA450 Rinse chamber;316L;Viton
-
Order code 71028946
Kit CPA450 Rinse cha. flange;316L;Kalrez
-
Order code 51501548
Kit CPA450 Ball valve DN32 Flange; 316
-
Order code 51501549
Kit CPA450 Ball val. ANSI1 1/4 inch; 316
-
Order code 71082362
Manometer G 1/4" for CPA450; 0-16 bar
mount on chamber, control pressure by manual operation
-
Order code 71083041
Drain ball 1/4" for drain of chamber
-
Order code 50090491
-
Order code 50090687
-
Order code 51517522
Splash protection cap for assemblies
-
Order code 51502284
Welding adaptor straight for CPA450-F/G
with G 1 1/4 external thread (conic) Material: stainless steel 316L
-
Order code 50089820
PAL mounting kit
For contacting the potential matching line in the Probfit assembly CPA 450
-
Order code 71098681
Safety Kit CPA450
Material 316L; safeguarding measurementposition up to 12 bar
-
-
