Liquiline System CAT810

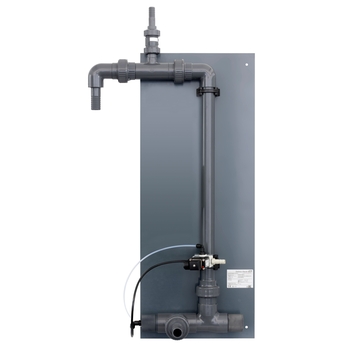

Liquiline System CAT810 - Sample preparation system for pressurized pipes and outlets, panel version ©Endress+Hauser

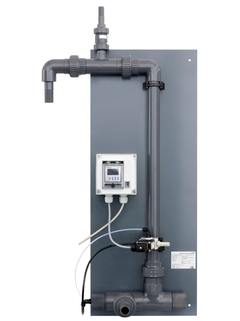

Liquiline System CAT810 - Sample preparation for pressurized pipes and outlets, panel with timer ©Endress+Hauser

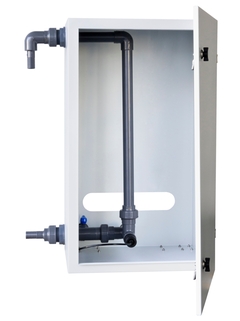

Liquiline System CAT810 - Sample preparation for pressurized pipes and outlets, stand version ©Endress+Hauser

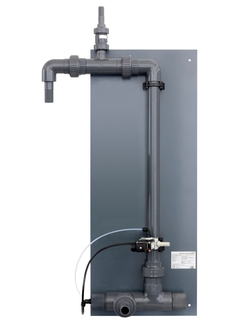

  • Liquiline System CAT810 - Sample preparation system for pressurized pipes and outlets, panel version
  • Liquiline System CAT810 - Sample preparation for pressurized pipes and outlets, panel with timer
  • Liquiline System CAT810 - Sample preparation for pressurized pipes and outlets, stand version

Self-cleaning backflush filter for sampling from pressurized pipes and outlets

Liquiline System CAT810 provides filtrate for continuous online monitoring of municipal and industrial wastewater and industrial processes. Its self-cleaning crossflow filter avoids filter blocking, thus increasing your process safety. Thanks to a minimized dead volume, it reflects changes in your process promptly and shortens the response time of your downstream measuring devices.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Process temperature

      4 to 40 °C (39 to 104 °F)

    • Process pressure

      1.5 to 4.0 bar (21.76 to 58.01 psi)
      For optional automatic cleaning:
      2.0 to 5.0 bar (29.0 to 72.5 psi); but at least 0.5 bar (7.3 psi) > process pressure

Quick selection

Choose from our suggested options
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

CAT810
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

Additional components

  • Benefits

    • Long maintenance intervals due to automatic back-flush function

    • Save costs through tool-free maintenance and easy replacement of filter elements

    • Control via the user-friendly Liquiline System analyzer for perfect synchronization of the measuring point or...

  • Field of application

    Liquiline System CAT810 is designed for:

    • Outlets of municipal and industrial wastewater treatment plants

    • Collection of aqueous samples from pressurized pipes in industrial processes

Features and specifications

Back

Details

  • Measuring principle

    Colorimetric

  • Characteristic

    Automatic sample preparation system for supplying process measuring devices with filtered samples from pressurized pipes

  • Size

    Panel version:
    870 x 350 x 177 mm
    34.25 x 13.78 x 6.97 inch
    Prepared for stand housing CA80:
    828 x 327 x 327 mm
    32.6 x 12.87 x 12.87 inch
    Basic version:
    811 x 303 x 131 mm
    31.93 x 11.93 x 5.16 inch

  • Design

    Back-wash filter system with various mounting options:
    Panel version, Prepared for stand housing of CA80, Basic version - filter unit

  • Process temperature

    4 to 40 °C (39 to 104 °F)

  • Ambient temperature

    4 to 40 °C (39 to 104 °F)

  • Process pressure

    1.5 to 4.0 bar (21.76 to 58.01 psi)
    For optional automatic cleaning:
    2.0 to 5.0 bar (29.0 to 72.5 psi); but at least 0.5 bar (7.3 psi) > process pressure

  • Specials

    Optional back-flush with pressurizd air or water
    Controling and parametrition via Lquiline System CA80
    Stand-alone version with time-control available

  • Application

    Sampling from pressurized pipes
    Preliminary and secondary clarification of municipal and industrial wastewater treatment plants
    Sampling of aqueous media from industrial processes

  • Power supply

    100 to 120/200 to 240 V AC ±10%, 50/60 Hz
