RIA14
Loop-powered field indicator

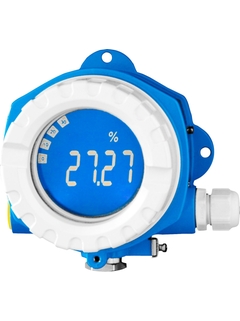

Loop-powered process indicator RIA14 for field installation ©Endress+Hauser
Loop-powered process indicator RIA14 for field installation ©Endress+Hauser

Excellent readable indication of a 4…20 mA signal on-site for a better process overview!

The indicator shows the measured signal on the large, backlit display. An additional bar graph gives a quick process overview and a plain text field displays further information like the engineering unit or TAG. Limit value infringements are also signalized and an open collector can be switched. No separate power supply is required, the indicator is powered directly from the 4...20 mA loop. The housing is available in aluminum and in stainless steel as well as with an optional Ex d approval.

  • Benefits

    • Display of 4 to 20 mA measured values

    • 5-digit measured value display with dimension, bar graph and backlight

    • No external power supply required

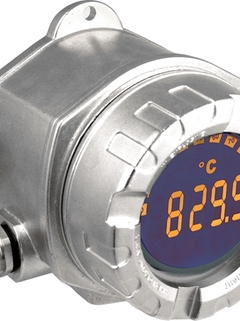

    • Versions: Die-cast aluminum housing or stainless steel housing

    • Easy 3-key operation; or configuration with...

  • Field of application

    Microcontroller controlled display unit in single chamber field housing with illuminated LC display. The measuring range, decimal point and offset of the display can be configured comfortably by means of three keys in the device with the housing open...

Details

  • Measuring principle

    Loop powered indicators

  • Measuring principle

    Loop-powered field indicator

  • Function

    Display

  • Display

    LCD 20 mm (0.79")

    5-digit

    Bargraph

    Plain text display

  • Power Supply

    Loop powered

  • Input

    1 x analogue 4...20 mA

  • Output

    1 x open collector

  • Output

    1 x open collector

  • Software functions

    Not defined

  • Certificates

    UL rec. Comp
    CSA GP
    ATEX Ex d
    ATEX Staub
    ATEX n
    FM USA NI
    FM USA DIP
    FM USA XP
    CSA NI
    CSA DIP
    CSA XP
    Marine approval
    EAC

  • SIL

    Not defined

  • Panel mounting

    field

  • Measuring principle

    Display

  • Function

    Display

  • Certification

    UL rec. Comp

    CSA GP

    ATEX Ex d

    ATEX Staub

    ATEX n

    FM USA NI

    FM USA DIP

    FM USA XP

    CSA NI

    CSA DIP

    CSA XP

    Marine approval

  • Input

    1 x analogue 4...20 mA

  • Output

    1 x open collector

  • Auxiliary power supply / Loop power supply

    Loop powered

  • Dimensions (wxhxd)

    Field housing:

    132 x 135 x 106 mm

    (5.2" x 5.31" x 4.17")

  • Operation

    3 keys interface on electronics + PC interface FieldCare

  • Display

    LCD 20 mm (0.79")

    5-digit

    Bargraph

    Plain text display
