WirelessHART Fieldgate SWG70
Intelligent WirelessHART gateway with Ethernet and RS-485 interfaces

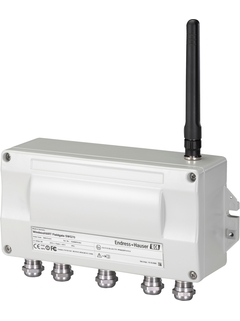

Endress+Hauser's WirelessHART Fieldgate SWG70 has been designed to act as interface between a system using Ethernet or RS-485 physical layer and WirelessHART network. The gateway is designed for mounting in explosion hazardous areas Zone 2. An integral or remote antenna can be mounted according to the needs of the application.
- F
- L
- E
- X
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
Specs at a glance
-
Output
Ethernet (10 BASE-T/10 BASE TX)
- Configurable for HART IP and MODBUS TCP communication
RS-485 serial interface
- Configurable for HART Version 7.0 or MODBUS RTU communication
EtherNet/IP interface -
Display
Integral via 5 LEDs
-
Quick selection
Individual configuration
-
Benefits
Easy commissioning and diagnosis of a self-organizing WirelessHART network
Seamless integration of field device information into superior system applications with standardized protocols, such as MODBUS, EtherNet/IP, HART-IP or OPC
Wireless configuration...
-
Field of application
Process optimization, Tank and silo monitoring/Inventory control, Condition monitoring of equipment. The WirelessHART gateway converts and stores wireless device data in a format that is compatible with other systems. It has Ethernet and serial...
Documents / Manuals / Software
-
WirelessHART Fieldgate SWG70
Technical Information
Intelligent WirelessHART gateway
with Ethernet and RS-485 interfacesTechnical Information (TI) -
WirelessHART Fieldgate SWG70
Brief Operating Instructions
DE, EN, FR, ES, IT, NL
Intelligente Funkstation
Intelligent wireless gateway
Station sans fil intelligente
Gateway inalámbrico inteligente
Gateway wireless intelligente
Intelligente draadloze gatewayOperating Instruction (BA) -
WirelessHART Fieldgate SWG70
Operating Instructions
Intelligent WirelessHART gateway
with Ethernet and RS-485 interfaceOperating Instruction (BA) -
WirelessHART–Fieldgate SWG70
Safety Instructions
ATEX: II 3 G Ex nA nC IIC T4 Gc
IECEx: Ex nA n IIC T4 Gc
Safety instructions for electrical apparatus for explosion-hazardous
areas according to Directive 94/9/EC (ATEX) and IEC 60079-0Ex Safety Instructions (XA) -
WirelessHART Fieldgate SWG70
Control Drawing
Ex Safety Instructions (XA) -
WirelessHART Fieldgate SWG70
Manufacturer Information
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)
New firmware version: 03.00.07 (Modbus) and 01.00.05 (EtherNet/IP)Manufacturer Information (MI) -
Solutions WirelessHART
pour des applications concrètes
Competence Brochure (CP)08/14fr -
WirelessHART-Lösungen
… für praxisgerechte Anwendungen
Kompetenzbroschüre
Endress+Hauser WirelessHART-Lösungen bieten mehr Informationen
über Prozesse und Anlagen. Dank effizienter Planung und schneller
Installation sinken die Projektkosten.Competence Brochure (CP)08/14German -
WirelessHART Solutions
…for real world applications
Competence Brochure
Endress+Hauser’s WirelessHART solutions provide you with more
information about your process and plant. Your project costs are also
reduced thanks to more efficient planning and rapid installation.Competence Brochure (CP)08/14English -
Беспроводные решения
Для автоматизации процессов
Решения WirelessHART от Endress+Hauser обеспечивают вам больше
информации о
процессе и оборудовании. Кроме того, они позволяют сократить издержки
благодаря
более эффективному планированию и быстрому монтажу.Competence Brochure (CP)08/14Russian -
Adaptador y Pasarela Wireless
Soluciones WirelessHART para monitorización y mantenimiento
Competence Brochure (CP)06/10Spanish -
WirelessHART Solutions
…for real world applications
Competence Brochure
Endress+Hauser’s WirelessHART solutions provide you with more
information about your process and plant. Your project costs are also
reduced thanks to more efficient planning and rapid installation.Competence Brochure (CP)01/15English -
Soluzioni WirelessHART
… per applicazioni concrete
Soluzioni WirelessHART
… per applicazioni concreteCompetence Brochure (CP)01/13Italian -
WirelessHART-Lösung für die Gewinnung von Rohöl
Fallbeispiel
Bohrloch-Überwachungssystem, Pacific Rubiales Energy, Kolumbien
Case Studies (CS)11/12German -
WirelessHART Solution for heavy crude oil extraction
Case Study
Well head Monitoring System, Pacific Rubiales Energy, Colombia
Case Studies (CS)11/12English -
Pacific Rubiales Energy fit for fastest growth
Increased performance with Endress+Hauser WirelessHART
Case Studies (CS)09/11English -
WirelessHART´-Lösung - Case Study
Überwachungssystem der Tanklageranlage bei Fa. Grupo Petroquímico
Beta (GPB), Coatzacoalcos, MexikoCase Studies (CS)07/12German -
WirelessHART Solution - Case Study
Monitoring System of the farm storage tank at Grupo Petroquímico Beta
(GPB), Coatzacoalcos, MexicoCase Studies (CS)07/12English -
Medición inalámbrica de nivel en máquina llenadora
Premium Technology por la mejora de la productividad de CCC
Case Studies (CS)06/16Spanish -
WirelessHART bei BASF
Fallbeispiel
Anspruchsvolle Anwendungen in der Produktion von
Qualitätskatalysatoren in De Meern, NiederlandeCase Studies (CS)04/11German -
WirelessHART at BASF
Case Study
Challenging applications in the production of high-quality catalysts in
De Meern, the NetherlandsCase Studies (CS)04/11English -
ZVEI-Broschüre: Automation, November 2008
Koexistenz von Funksystemen in der Automatiserungstechnik
Erläuterungen zum zuverlässigen Parallelbetrieb von FunklösungenInnovations (IN)11/11German -
ZVEI Brochure: Automation, April 2009
Coexistence of Wireless Systems in Automation Technology
Explanations on reliable parallel operation of wireless radio solutionsInnovations (IN)08/10English -
Adaptador y Fieldgate wireless
Soluciones WirelessHART para monitorización y mantenimiento
Innovations (IN)04/08Spanish -
ZVEI Brochure: Wireless Solutions in Automation, March 2011
Overview of the use of wireless systems for various fields of
application
within the industrial environment.Innovations (IN)03/11English -
ZVEI Broschüre: Funklösungen in der Automation, März 2011
Überblick über den Einsatz von Funksystemen im industriellen Umfeld in
verschiedenen Anwendungsfeldern.Innovations (IN)03/11German -
WirelessHART Adapter SWA70 / WirelessHART Gateway SWG70
Funklösung WirelessHART zur drahtlosen Übertragung von Messwerten und
zusätzlichen Informationen von Messgeräten, bestehend aus einem Gateway
und einem
oder mehreren Geräte-AdapternTender Text03/20German -
WirelessHART Fieldgate SWG70 Firmware Package
Modbus Firmware Package Version 3.00.08. Please refer to
Endress+Hauser's operating instructions (i.e. BA) to get a full
description of the new functionality. Please, make sure to update the
corresponding device driver (i.e. DTM) too.Software3.00.08Language neutral -
WirelessHART- Fieldgate SWG70 - OPC Server
WirelessHART- Fieldgate SWG70 - OPC Server
Software1.00.01Language neutral -
WirelessHART Fieldgate SWG70 Firmware Package
EtherNet/IP Firmware Package Version 01.00.05. Please refer to
Endress+Hauser's operating instructions (i.e. BA) to get a full
description of the new functionality. Please, make sure to update the
corresponding device driver (i.e. DTM) too.Software01.00.05Language neutral -
EDS Single, EDS_EH_EIP_CO_SWG70_0x11F2_na_na, 15.03.2016 (Components, Wir
elessHART)
EtherNet/IP,
EtherNet IP System Version: AnyElectronic Data Sheet (EDS)3.11Language neutral -
DTM Library, EH_Wireless_HART_Package, 23.03.2021 (Components, WirelessHART)
HART,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)01.03.08Language neutral -
AOP Single, AOP_EH_EIP_CO_SWG70_0x11F2_na_na, 10.02.2021 (Components, WirelessHART, 0x11F2)
EtherNet/IP,
RA RSLogix 5000 Version: V15 and laterAdd On Profile (AOP)1.06.01Language neutral -
WirelessHART Gateway SWG70
WirelessHART Gateway SWG70
Picture08/19Language neutral -
Fieldgate
Product Code: SWG70-
Declaration Number: EC_00432_03.16EU DeclarationGerman , English , fr -
Fieldgate
Product Code: SWG70-
Declaration Number: EC_00432_02.16EU DeclarationGerman , English , fr -
Fieldgate
Product Code: SWG70-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Protection: Ex nAExplosion ProtectionRussian -
Fieldgate
Product Code: SWG70-
Region/Country: USA
Approval Agency: FM
Category: I/2/A,B,C,D/T4, II/2/E,F,G/, III/2/E,F,G/T4, I/zone 2
Protection: NI, AEx nA IIC T4 Gc, AEx nC IIC T4 GcExplosion ProtectionEnglish -
Fieldgate
Product Code: SWG70-
Region/Country: Canada
Approval Agency: FM
Category: I/2/A,B,C,D T4, II/2/E,F,G, III/2/E,F,G T4, I/zone 2
Protection: NI, Ex nA IIC T4 Gc, Ex nC IIC T4 GcExplosion ProtectionEnglish -
Fieldgate
Product Code: SWG70-
Radio EquipmentEnglish -
Fieldgate
Product Code: SWG70-
Region/Country: International
Approval Agency: ODVAFieldbus ConformanceEnglish -
Fieldgate
Product Code: SWG70-
Region/Country: USA
Approval Agency: ULOrdinary Location Product SafetyEnglish
Accessories / Spare parts
-
-
Order code 71131502
Remote dipole antenna
Consists of: Dipole antenna, mounting kit Usage: WirelessHART Fieldgate
-
Order code 71131503
Remote panel antenna
Consists of: Panel antenna, mounting kit Usage: WirelessHART Fieldgate
-
Order code 71131504
Remote cabinet antenna
Consists of: Cabinet antenna, mounting kit Usage: WirelessHART Fieldgate
-
-
-
Nr 4 Order code 71131505
Lightning / EMP protector
Consists of: Lightning / EMP protector Usage: WirelessHART Fieldgate
-
-
-
Nr 3;5 Order code 71131509
Coaxial cable 2,5 meter
Consists of: Coaxial cable 2,5 meter Usage: WirelessHART Fieldgate
-
Nr 3;5 Order code 71131508
Coaxial cable 5 meter
Consists of: Coaxial cable 5 meter Usage: WirelessHART Fieldgate
-
Nr 3;5 Order code 71131507
Coaxial cable 10 meter
Consists of: Coaxial cable 10 meter Usage: WirelessHART Fieldgate
-
Nr 3;5 Order code 71131506
Coaxial cable 15 meter
Consists of: Coaxial cable 15 meter Usage: WirelessHART Fieldgate
-
-
-
Order code 71131510
Replacement antenna
Consists of: Default dipole antenna Usage: WirelessHART Fieldgate
-
