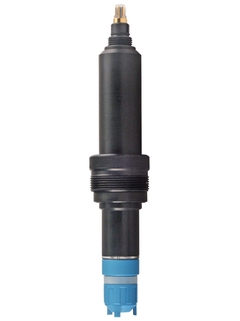

Analog total chlorine sensor
CCS120
Disinfection sensor for all water and wastewater applications
CCS120 is the analog sensor for standard measurement of total chlorine. It delivers reliable values even if fluctuations in flow or conductivity occur and allows control of the disinfection loop so that the water is free of germs. At the same time, the sensor is designed for long calibration and service intervals reducing your maintenance effort.
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
Specs at a glance
-
Measurement range
0,1 - 10ppm total chlorine; pH 6,5 - 9,5
-
Process temperature
5°C - 45°C
-
Process pressure
0bar - 3bar
-
Quick selection
Individual configuration
-
Benefits
Recalibration intervals approx. 1 to 3 months under constant operating conditions
Easy membrane replacement thanks to prefabricated membrane cap
Measured values are not affected by conductivity fluctuation
Measurement virtually independent of flow rate in...
-
Field of application
CCS120 measures total chlorine in:
Drinking and process water
- Process and distribution networks
- Monitoring, control and optimization of disinfection processesWastewater treatment plants
- Disinfection monitoring and control in wastewater outlet
-...
