Liquiline System CA80TP - TP analyzer for environmental monitoring

TP analyzer

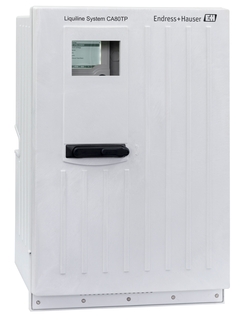

Liquiline System CA80TP

Total phosphorus analyzer for environmental monitoring, industrial and municipal wastewater

CA80TP

Compare

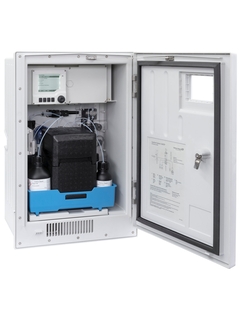

Inside view of the TP analyzer with cooling module

Specs at a glance

Measuring range

0 to 2 mg/l
0.05 to 10 mg/l
0.5 to 50 mg/l
Process temperature

4 to 40 °C (39.2 to 104 °F)
Process pressure

At atmospheric pressure, < 0.2 bar

See all specifications

Field of application

Phosphorus is the decisive factor for excessive algae and plant growth in water bodies, that's why continuous monitoring of this parameter is essential. The Liquiline System TP analyzer offers precise online measurement of total phosphorus and ensures highest process safety. Automatic calibration and cleaning save you operating costs while advanced diagnostics with remote access support you in providing process documentation to the authorities.

The Liquiline System TP analyzer monitors:

Inlet and outlet of wastewater treatment plants for documentation purposes and calculation of the cleaning capacity
Discharges of industrial wastewater treatment plants to determine discharge fees and to support the polluter-pays-principle
Process water

Benefits

Molybdenum blue method according to EN ISO 6878:2004 guarantees direct comparability to laboratory results
Meeting industry needs: The analyzer is perfectly suited for environmental monitoring, industrial and municipal wastewater
Fast and easy process integration: Direct installation of self-priming version or y-strainer for bypass applications
Safety on the highest level: Software-controlled safety cover for the reactor and all heated parts. Additional safety light barrier prevents overdosing of reagents and sample.
Combination of reliable sample delivery and high-precision dosing: Peristaltic pumps are able to cope with particles in the sample. Light barriers enable precise, reproducible dosing.
Enhanced reagent lifetime thanks to optional cooling module
Easy upgrade of functionality to a complete measuring station - simply by adding modules and connecting Memosens sensors.

Videos

The total phosphorus concentration of a liquid can be determined using chemical and thermal digestion and the colorimetric measuring principle. This video shows how this measuring principle works.
