iTEMP TMT82 HART® 7 temperature transmitter

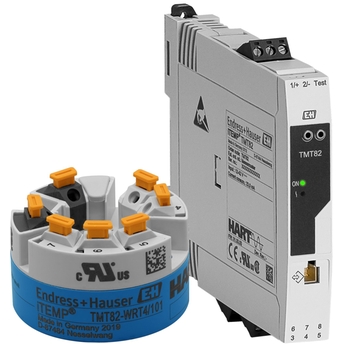

iTEMP TMT82 HART® 7 temperature transmitter in DIN rail and terminal head form ©Endress+Hauser

iTEMP TMT82 HART® temperature transmitter in terminal head form B as per DIN EN 50446 with push-in terminals,
DIN rail housing variant

Product picture iTEMP TMT82 Temperature transmitter ©Endress+Hauser

Display TID10 to plug on

iTEMP TMT82 dual compartment field housing with integrated display ©Endress+Hauser

iTEMP TMT82 in field mount housing with separate terminal
compartment and integrated display for use in hazardous areas

iTEMP TMT82 Temperature transmitter ©Endress+Hauser

Installed in field housing TA30H for use in Ex d applications

iTEMP TMT82 temperature transmitter with screw terminals ©Endress+Hauser

iTEMP TMT82 temperature transmitter in terminal head form B as per DIN EN 50446, with screw terminals

Dual channel, SIL compliant temperature transmitter for use in hazardous areas

The iTEMP TMT82 is a highly reliable, accurate and long-term stable temperature transmitter for industrial processes requiring high availability.
The versatile 2-channel device converts universal sensor inputs such as thermocouples or RTD into stable, scalable 4 to 20 mA output signals and HART® communication. With its built-in smart sensor monitoring capability and diagnostic status information according to NAMUR NE 107, the SIL 2, SC3 certified transmitter increases process safety and uptime.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Accuracy

      (Pt100) <= 0,1K (digital) + 0,03% (set range)

please wait Loading alternative products

Quick selection

Choose from our suggested options
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • Robust temperature transmitter delivering precise, long-term stable measurements for high plant availability

    • SIL certification up to SIL2, SC3 according to IEC 61508:2010

    • Versatile mounting and housing options:
      terminal head form B, DIN rail, field...

  • Field of application

    • Safe operation in hazardous areas; International approvals such as FM, CSA, ATEX, EAC, NEPSI, IECEx, DNV GL

    • 2-channel universal signal inputs: RTD, thermocouple, resistance (Ω) and voltage transmitters (mV), HART® 7 protocol

    • Suited for use in marine...

Features and specifications

Back

Details

  • Measuring principle

    Head transmitter

  • Input

    2 x RTD, TC

  • Output

    1 x analog 4...20 mA / HART

  • Auxiliary power supply

    11...42 V DC

  • Communication

    HART-protocol

  • Installation

    Terminal head form B, DIN-Rail housing or field mount housing

  • Accuracy

    (Pt100) <= 0,1K (digital) + 0,03% (set range)

  • Galvanic isolation

    yes

  • Certification

    Non-hazardous area

    ATEX

    CSA

    FM

    EAC

    IECEx

    NEPSI

    FM+CSA

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code

      The unit is not repairable

    • Order code 71044061

      Fixing kit cpl.TMT8x/7x (european)

      2x screws, 2x springs, 2x spring rings, 1x sealing CDI-connector

    • Order code 71044062

      Fixing kit cpl. TMT8x/7x USA(american)

      2x screws, 1x sealing CDI-connector

    • Order code 71123339

      Set mounting bracket wall cpl. W06 std

    • Order code 71123342

      Set mounting bracket pipe housing W06 st

    • Order code 71409760

      Spare parts kit DIN rail terminal plug

      TMT82

    • Order code 51004823

      Mount.bracket st.steel A4 wall/tube 2"

    • Order code 71086650

      TID10 Service cable

      Extension cable for the CDI-interface for remote operation of the TID10 display for service and maintenance work. Length: 40cm.

    • Order code 71528231

      Adapter DIN rail mounting

      Clip according to IEC 60715 for temperature head transmitters. Packing unit: 2 pieces

    • Order code DIENST-
    • Order code XPRFID-

      Spare RFID TAG

      Consists of: RFID TAG, fixing wire, crimp sleeve.

  • 7
    • Nr 7 Order code 51004948

      Cover latch spares kit field housing

      Screw, washer, spring washer

  • 8
  • 8
    • Order code 71524431

      Foam insert TMT82 dual chamber

    • Order code FXA195-

      Commubox FXA195

      Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.

    • Order code TID10-

      Display Unit Head Transmitter

      to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82, TMT71, TMT72.
